24V 8A CHARGER

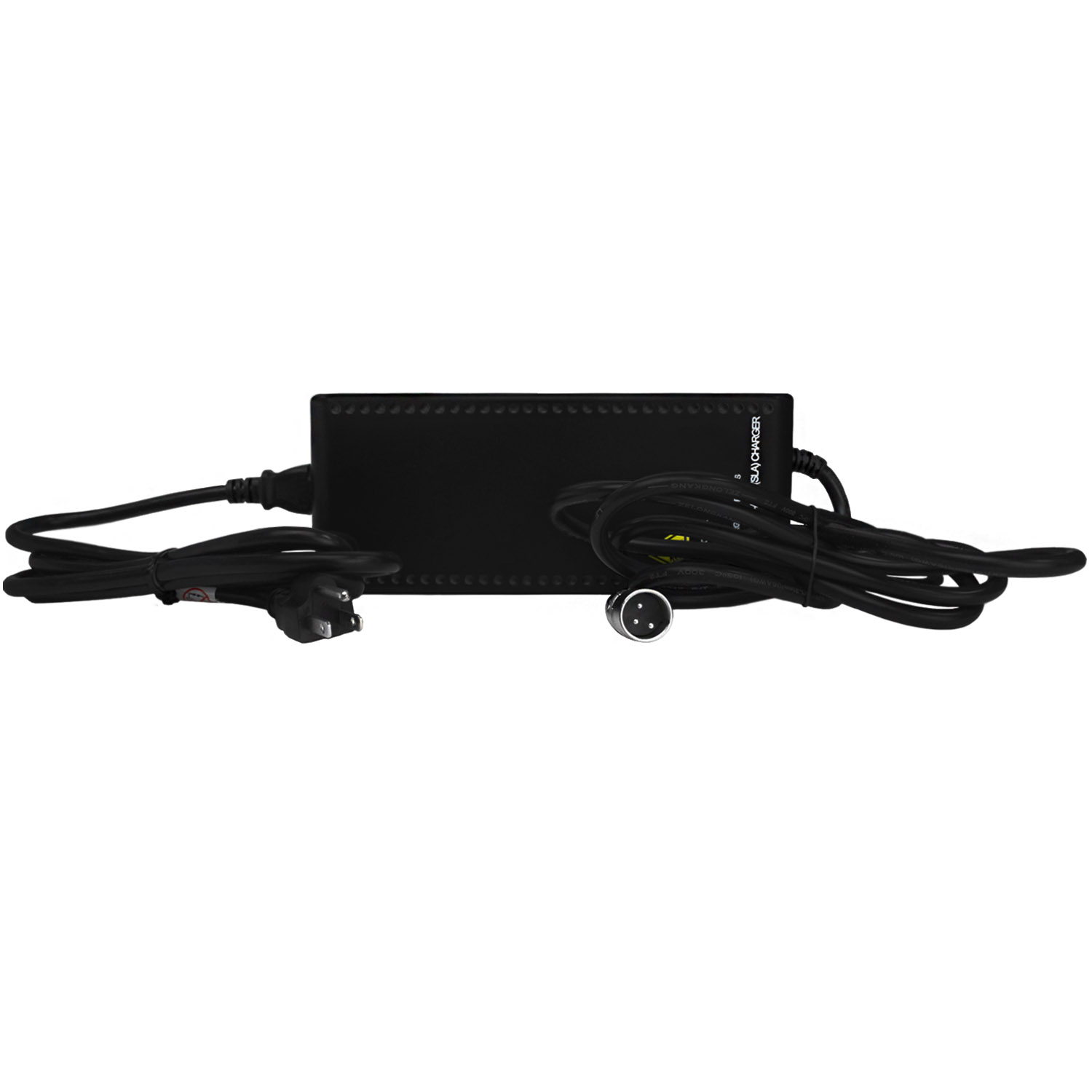

24 volt 8 amp Premium Quality Heavy Duty off-board portable switching mode battery charger convection cooled, Underwriters Laboratories UL¨ Listed for Sealed AGM, GEL batteries recommended for 35 ah - 100 ah. This 3 stage Smart Charger with Automatic shut-off has Overcharge Protection by Universal Power. Standard 3-prong Male XLR plug/connector which fits Female XLR port for electric mobility scooter, wheelchair, power chair.
CHARGING A BATTERY:
Follow these steps to charge a battery:
-
Connect the charger DC output cable to the battery terminal receptacle.
-
Plug the charger power cord into the charger.
-
Plug the power cord into wall.
-
The green "Power" LED (LED 1) should be on. LED 2 should also be on (it will either be red, orange or green depending on the state of the charge of the batteries.
LED INDICATORS:
LED 1 Power On ----------------------------------- Green
LED 2 Fast Charge -------------------------------- Red
Top Charging ---------------------------- Orange
Fully Charged/Floating ----------------- Green
LED 3 Battery Failure/Disconnected ---------- Blue
THREE STAGE CHARGE CYCLE:
An integrated circuit monitors and controls both the output voltage and current of the charger through three separate charge states.
SAFETY FEATURES:
-
Short-circuit Protection - Protects the charger from short-circuit damage.
-
Over Current Protection - Protects the charger from over-current demand
-
Over Voltage Protection - Protects the batteries from damage.
-
Battery Polarity Reversal - Protects the charger and batteries against incorrectly installed batteries.
-
Low Battery Voltage - When the battery is under 16V, the charger will not operate.
SPECIFICATIONS:
|
1 |
Input Voltage |
100 - 240Vac +/-10% |
|
2 |
Input Frequency |
50 - 60 Hz |
|
3 |
Output Voltage
Fast Charge (Bulk)
Float
|
DC 29.4V +/- 0.5V
DC 27.4V +/- 0.5V
|
|
4 |
Output Current
Fast Charge (Bulk)
|
DC 8,000mA |
|
5 |
Battery Capacity |
24 - 80 Ahr (Suggested) |
|
6 |
Operating Temperature |
+32 F/0 C to +104 F/40 C |
|
7 |
Storage Temperature |
-4 F/-20 C to +176 F/80 C |
|
8 |
Power Supply Cord |
SJT, 18AWGX3C, 300V 105 C |
REPLACEMENT FOR OEM Invacare, Action Simply Smart, Dynamic, Lester.1123249, BAT-GC0811, BAT-EN0811, 16810,1053161, 1062556, 1014758, 12620, 12610 type 24EL8, 24v 8a, 24v 8 amp, 8.0a, 7 amp, 7a, 7.0a.
