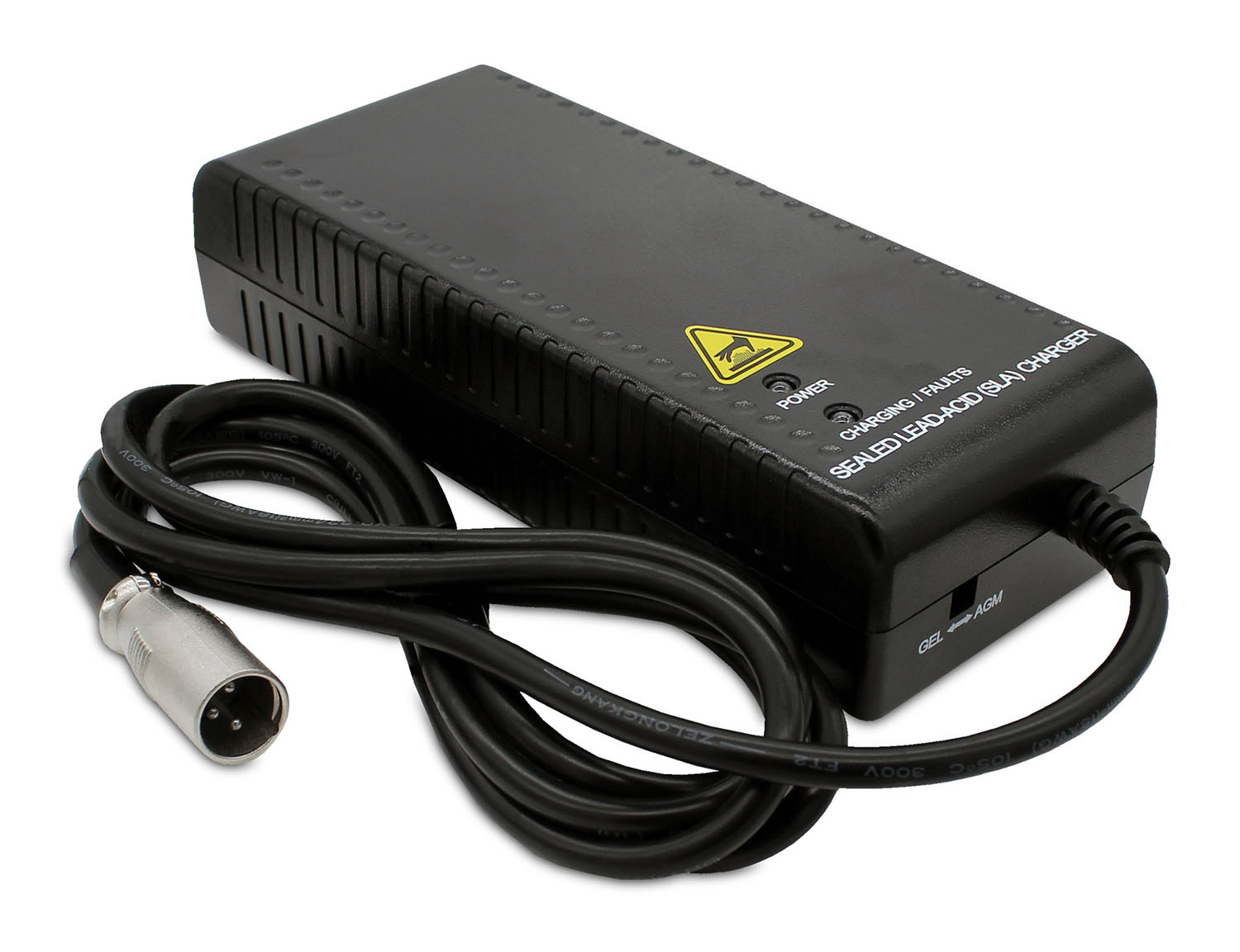

UPG - 24V 5Amp 3 Stage XLR Charger for Heartway Vision P13, P13C, P13R, P13RT

Price:

$69.99

Free Shipping!

The perfect charger for most wheelchair batteries. Comes with the round 3 pin XLR connector for SLA Batteries.

Our SKU: 3351888

Part: 24BC5000TFU

Condition: New | What's this

Available

» Technical Specs
» Condition

This is a 3 stage automatic smart wheelchair battery charger. It will not damage your batteries if left connected. Used with the following wheelchairs: Invacare Pride Mobility Hoveround Freedom DDC Shoprider E-Scooter Electra Frank Mobility Merits Health Products Theradyne ...and others with batteries.

Input Voltage 100VAC - 240VAC
Input Frequency 50Hz - 60Hz
Over - Voltage Protection (<) 30VDC
Over - Current Protection (>) 5.5A
Input Power (Watts) (<) 180 Watts
Input Standby Power (Watts) (<) 8 Watts
Efficiency 80%
Battery Size Range 12AH - 50AH
4.2KV for 1min. @ 3.5mA
Output Voltage
Bulk Charge 28.6VDC +/ -0.5VDC
Float Charge 26.6VDC +/ -0.5VDC
Output Current
Bulk Charge 5A +/ - 0.5A
Float Charge (<) 1.2A
Speciï¬cation
Dielectric Withstand Voltage
Insulation Resistance 50M Ω min. @ 500VDC, Input to Output
Operating Temperature -10ËšC ~+ 40ËšC
Storage Temperature -10ËšC ~+ 80ËšC
Connector 3 Pin D (XLR), Pin 1 (+) / Pin 2 & 3 (ground)
Standards UL1012, CUL, FCC Part 15- Class B

Condition

This product is brand new.

Original manufacturer supplied accessories are included.
Full manufacturers warranty is included.
