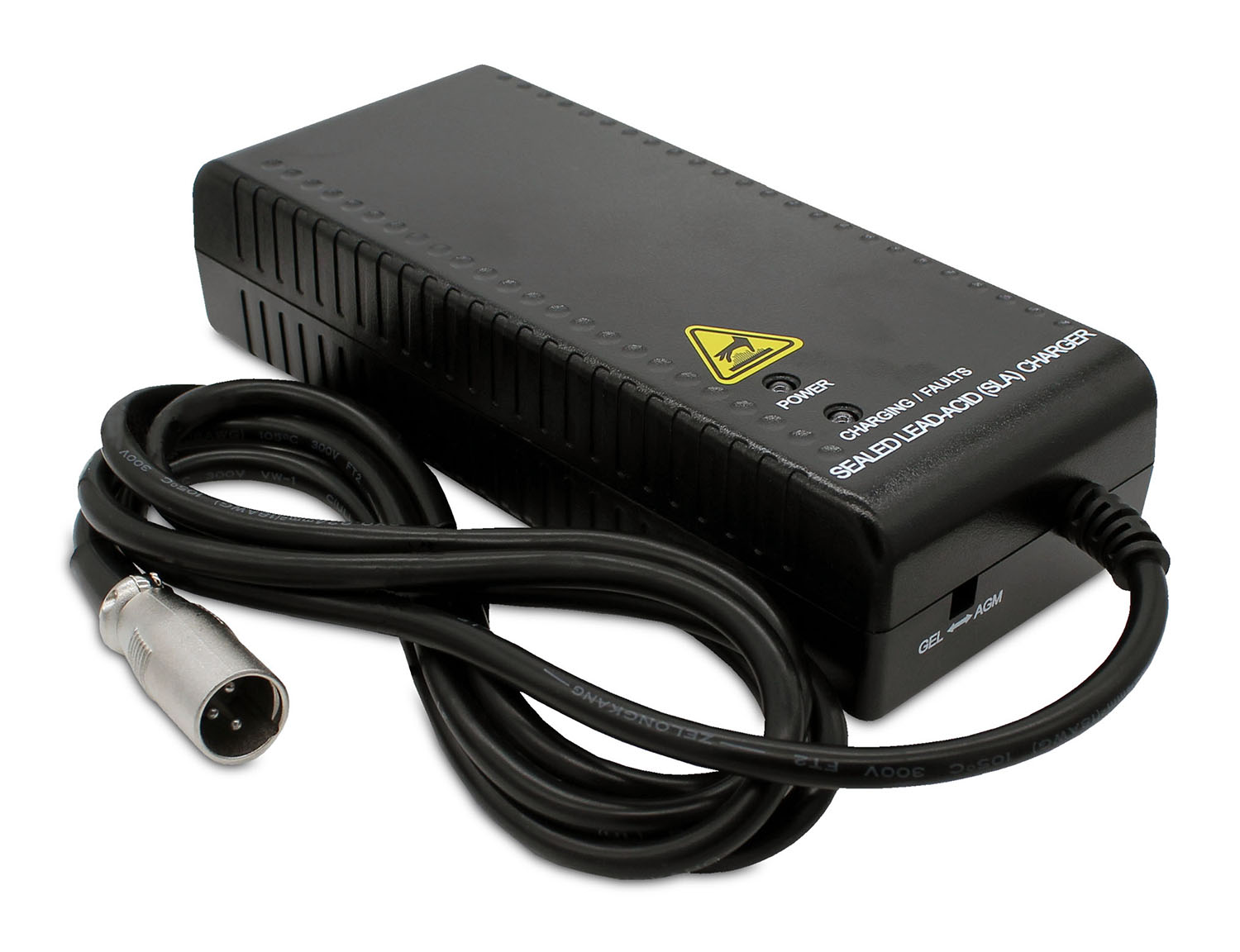

Universal Power Group - 24V 5A Gel Sealed Lead Acid Battery Charger 3-Stage Fan-Cooled

Price:

$69.99

Free Shipping!

The perfect charger for most wheelchair batteries. Comes with the round 3 pin XLR connector for SLA Batteries.

Our SKU: 3351180

Part: 24BC5000TFG-1ALT2

Condition: New | What's this

Available

» Technical Specs
» Condition

This is a 3 stage automatic smart wheelchair battery charger. It will not damage your batteries if left connected. Used with the following wheelchairs: Invacare Pride Mobility Hoveround Freedom DDC Shoprider E-Scooter Electra Frank Mobility Merits Health Products Theradyne ...and others with batteries.

Input Voltage 100VAC - 240VAC

Input Frequency 50Hz - 60Hz

Over - Voltage Protection (<) 30VDC

Over - Current Protection (>) 5.5A

Input Power (Watts) (<) 180 Watts

Input Standby Power (Watts) (<) 8 Watts

Efficiency 80%

Battery Size Range 12AH - 50AH

4.2KV for 1min. @ 3.5mA

Output Voltage

Bulk Charge 28.6VDC +/ -0.5VDC

Float Charge 26.6VDC +/ -0.5VDC

Output Current

Bulk Charge 5A +/ - 0.5A

Float Charge (<) 1.2A

Specification

Dielectric Withstand Voltage

Insulation Resistance 50M Ω min. @ 500VDC, Input to Output

Operating Temperature -10ËšC ~+ 40ËšC

Storage Temperature -10ËšC ~+ 80ËšC

Connector 3 Pin D (XLR), Pin 1 (+) / Pin 2 & 3 (ground)

Standards UL1012, CUL, FCC Part 15- Class B

LED Status Indication

LED 1: Red Color - Power ON

LED 2: Dual Color

Fast Charge - Red

Float Charge - Green

Condition

This product is brand new.

Original manufacturer supplied accessories are included.
Full manufacturers warranty is included.
