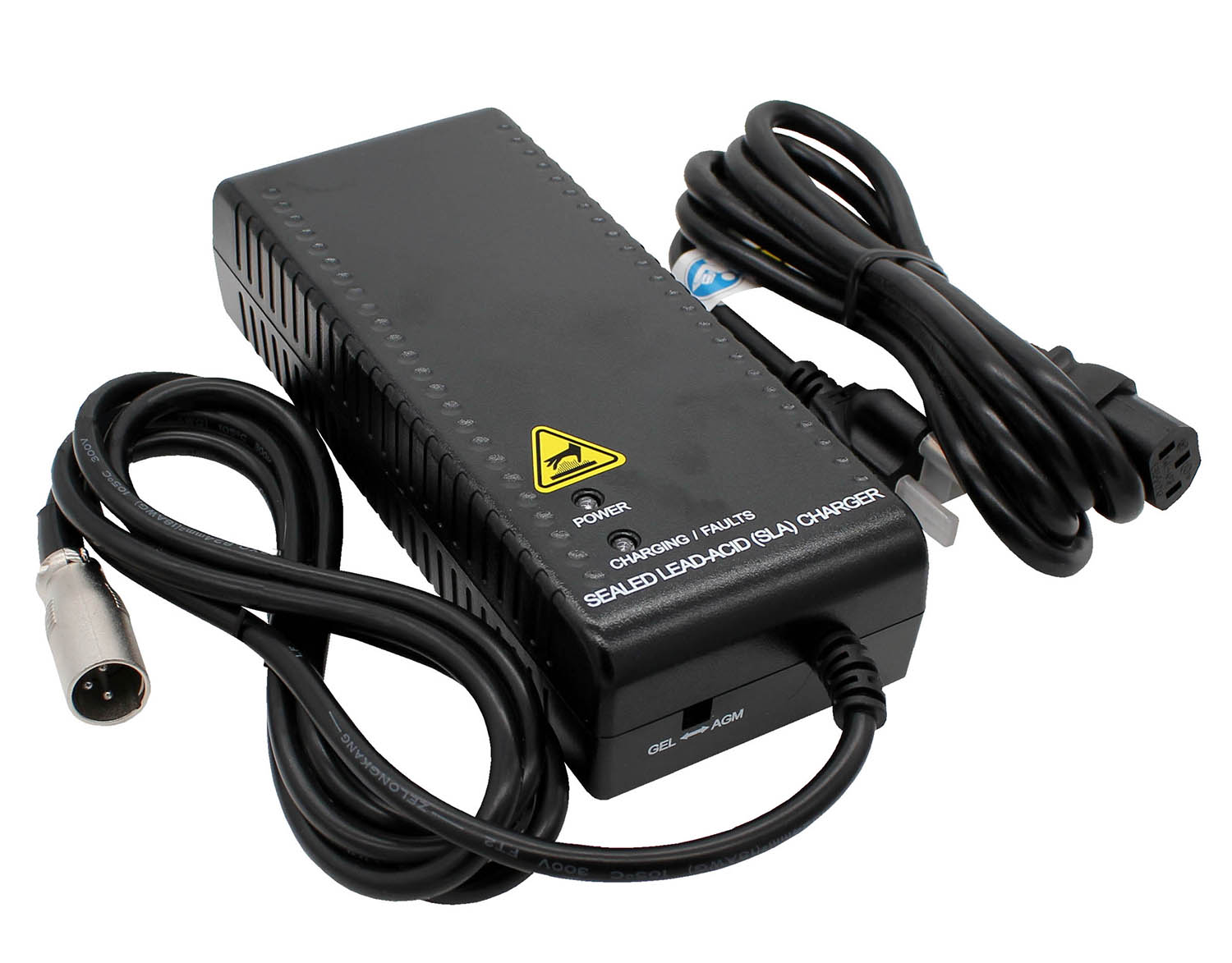

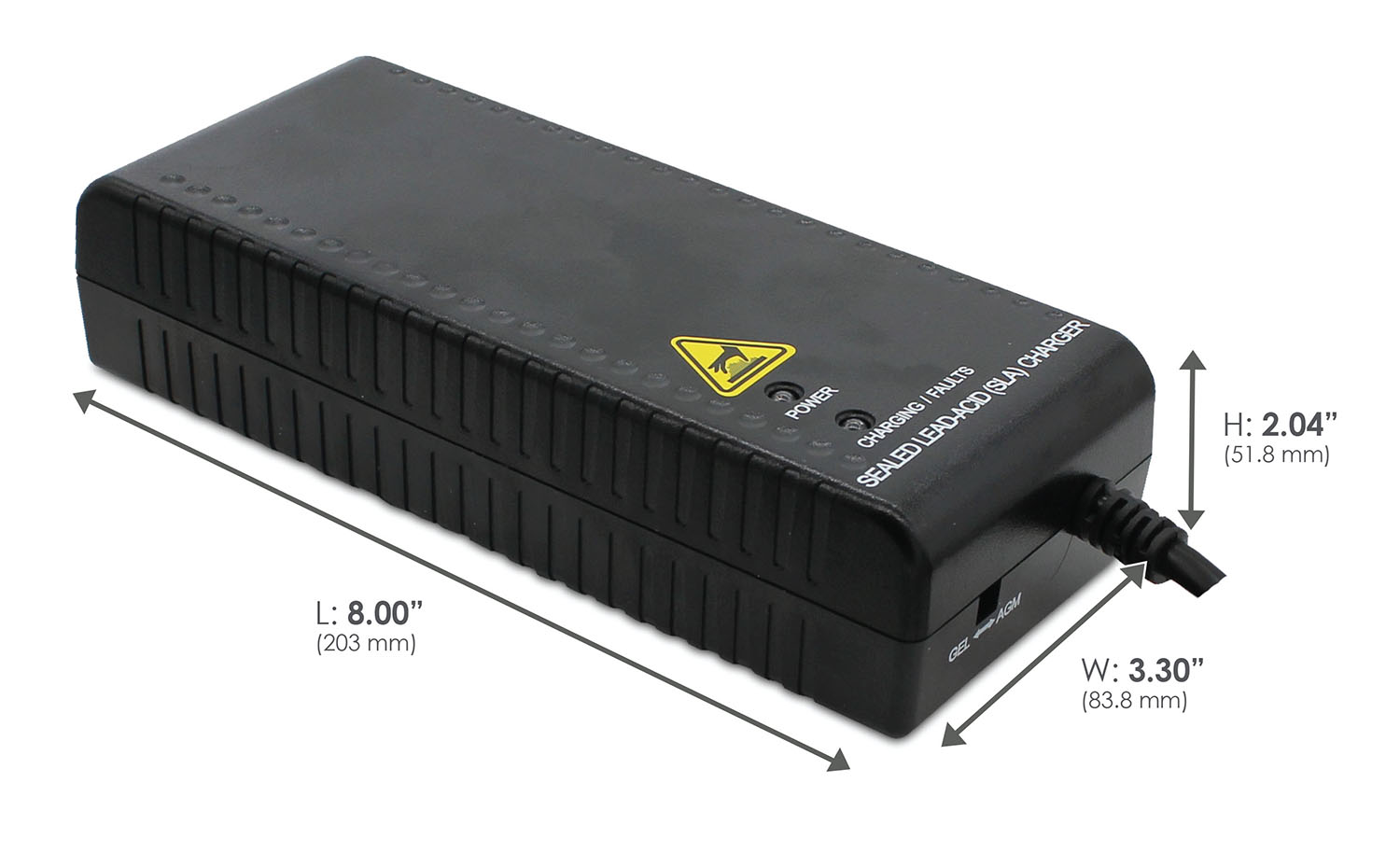

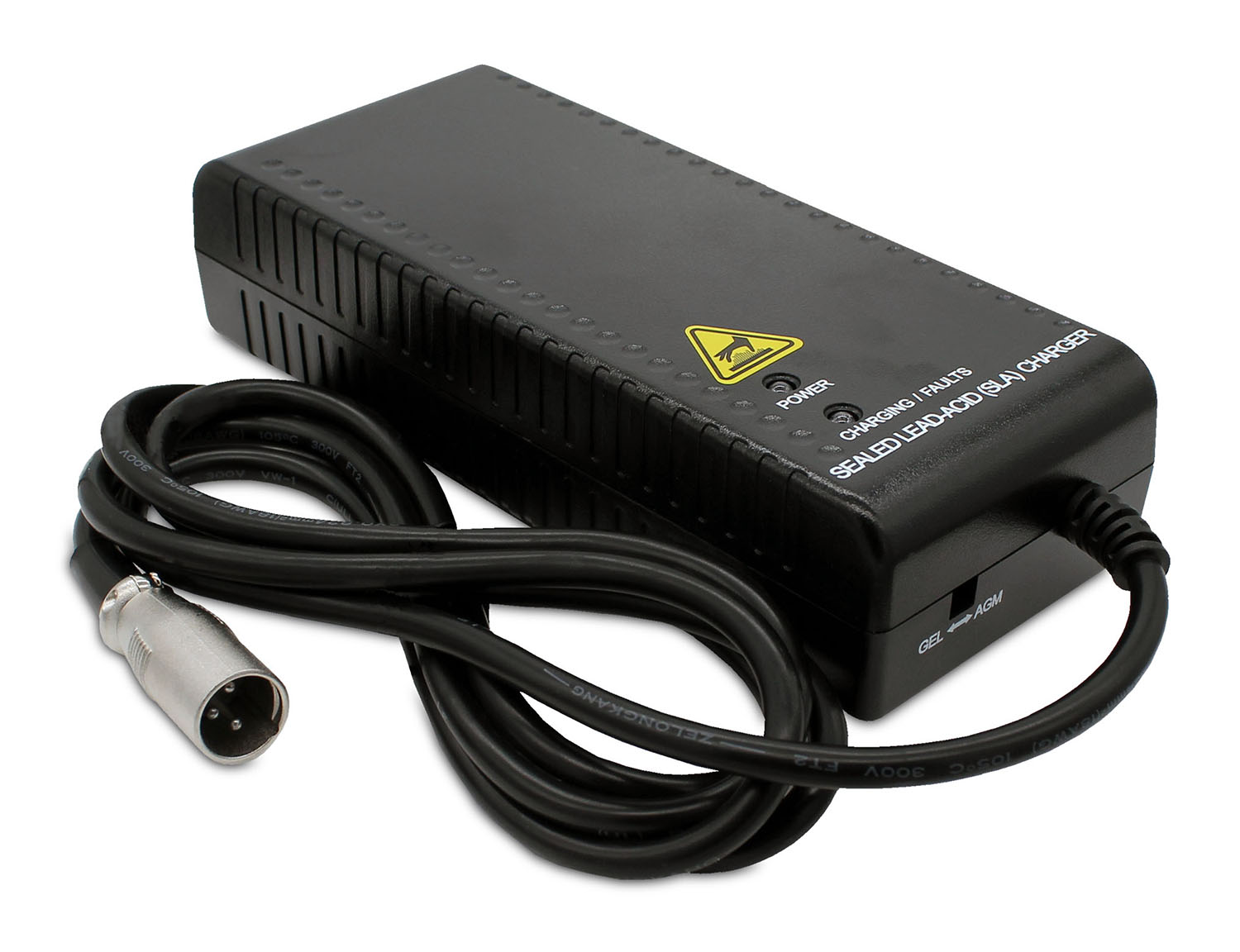

UPG - 24V 5A Wheelchair Charger with Fan for AGM

Price:

$59.99

Free Shipping!

The perfect charger for most wheelchair batteries. Comes with the round 3 pin XLR connector for SLA Batteries.

Our SKU: 3195554

Part: 24BC5000TFU-1

Condition: New | What's this

Available

  • » Technical Specs
  • » Condition
This is a 3 stage automatic smart wheelchair battery charger. It will not damage your batteries if left connected. Used with the following wheelchairs: Invacare Pride Mobility Hoveround Freedom DDC Shoprider E-Scooter Electra Frank Mobility Merits Health Products Theradyne ...and others with batteries.




  • Input Voltage 100VAC - 240VAC
  • Input Frequency 50Hz - 60Hz
  • Over - Voltage Protection (<) 30VDC
  • Over - Current Protection (>) 5.5A
  • Input Power (Watts) (<) 180 Watts
  • Input Standby Power (Watts) (<) 8 Watts
  • Efficiency 80%
  • Battery Size Range 12AH - 50AH
  • 4.2KV for 1min. @ 3.5mA
  • Output Voltage
  • Bulk Charge 28.6VDC +/ -0.5VDC
  • Float Charge 26.6VDC +/ -0.5VDC
  • Output Current
  • Bulk Charge 5A +/ - 0.5A
  • Float Charge (<) 1.2A
  • Specification
  • Dielectric Withstand Voltage
  • Insulation Resistance 50M Ω min. @ 500VDC, Input to Output
  • Operating Temperature -10ËšC ~+ 40ËšC
  • Storage Temperature -10ËšC ~+ 80ËšC
  • Connector 3 Pin D (XLR), Pin 1 (+) / Pin 2 & 3 (ground)
  • Standards UL1012, CUL, FCC Part 15- Class B

Condition

This product is brand new.

  • Original manufacturer supplied accessories are included.
  • Full manufacturers warranty is included.
